Home / Shop / Susp Lift Kits 4wd / 5 Inch Lift Kit | Fr D/S | 10 Bolt T-Case | Ram 3500 4WD (2025-2026)

Rough Country

5 Inch Lift Kit | Fr D/S | 10 Bolt T-Case | Ram 3500 4WD (2025-2026)

SKU: 35230 · UPC: 840269974151
$2499.95
IN STOCK — only 2 left
SCHEDULE INSTALLATION
Commanding Lift. Confident Performance: Transform your RAM 3500 with Rough Country's 5-Inch Lift Kit, engineered for bold looks and off-road domination. Featuring linear coil springs, a heavy-duty front driveshaft, and application-valved N3 shock absorbers, this kit delivers increased ground clearance, leveled stance, and trail-tested performance, all while maintaining a smooth, factory-like ride. Precision Suspension Engineering: Maintaining proper suspension geometry is critical for both on- and off-road control. This kit includes a drop pitman arm to correct steering angles and a track bar drop bracket to keep your front axle perfectly centered, ensuring stable, predictable handling at every turn. Heavy-Duty Radius Arms: Custom radius arms bolt directly to factory mounts and retain factory-like angles. Outfitted with premium rubber bushings, they minimize vibration and noise while maximizing ride comfort and suspension travel. Linear Coil Springs for Consistency: Front and rear linear-rate coil springs offer a reliable, controlled ride with balanced articulation and load handling, perfect for daily driving, towing, or backcountry exploring. Upgraded Front Driveshaft Included: This kit comes complete with a high-clearance front driveshaft designed to accommodate added articulation and drivetrain angles, no need for costly aftermarket upgrades. Includes N3 Series Shocks: Rough Country's N3 shocks are specifically valved for your RAM 3500, delivering balanced performance both on the highway and in rugged off-road environments. Clears 37-Inch Tires with Ease: Run aggressive 37-inch tires with confidence. This kit gives your RAM the clearance it needs for true off-road capability and a head-turning stance.
BrandRough Country
SKU35230
Manufacturer part #
Weight294.35 lbs
Install time7-10 hours

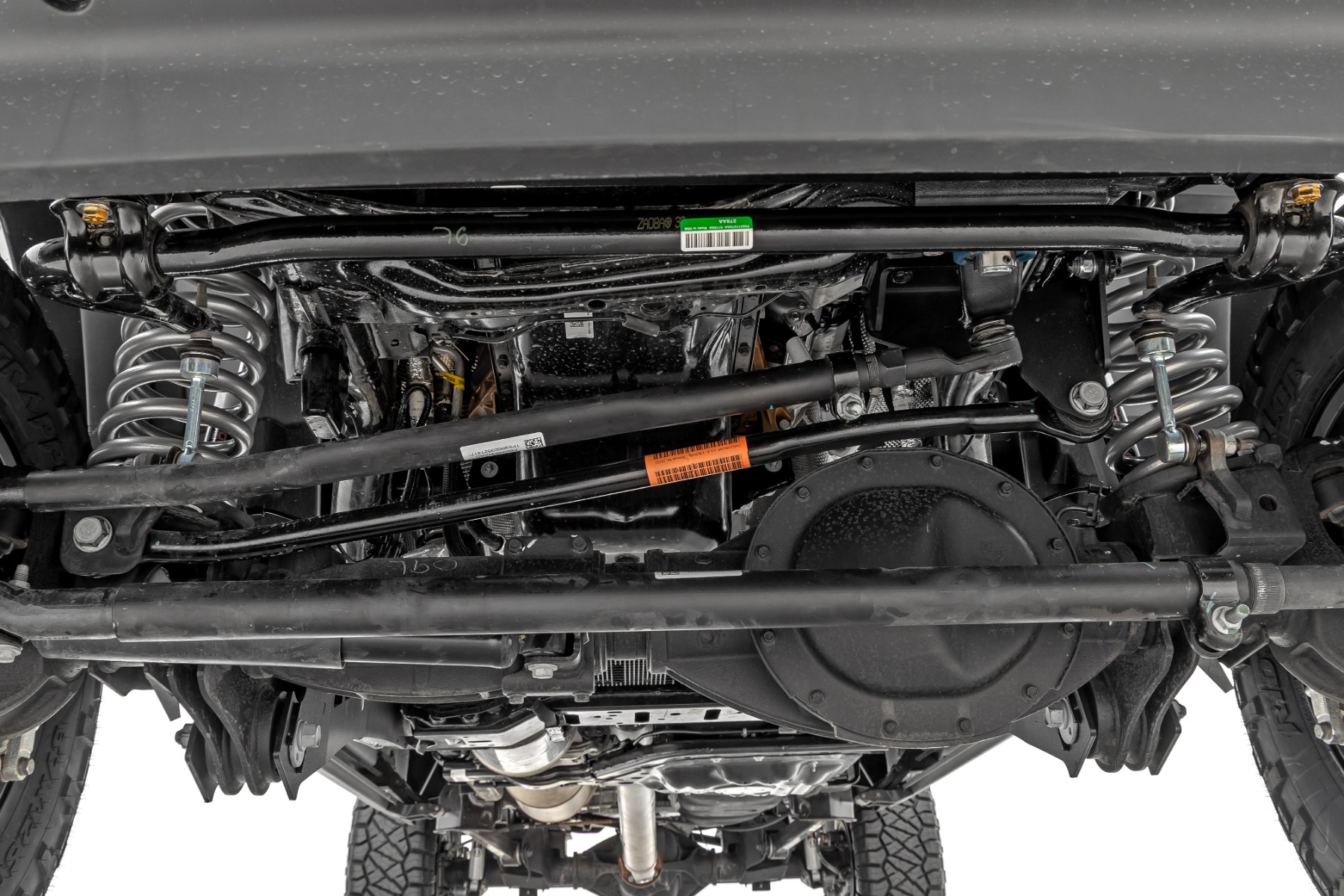

Front componentsLifted Coil Springs Radius Arms Track Bar Bracket Bump Stops Sway-Bar Brackets Driveshaft Pitman Arm Hardware
Rear componentsRear Lift Spacers Track Bar Bracket Sway-Bar Links Bump Stop Brackets Hardware
Tire info37x12.50R17:17x8.5:8x6.5/8x165.1:+0:-;37x12.50R17:17x8.5:8x6.5/8x165.1:+1:-;37x12.50R17:17x9:8x6.5/8x165.1:+0:-;37x12.50R17:17x9:8x6.5/8x165.1:+1:-;37x12.50R20:20x9:8x6.5/8x165.1:+0:-;35x12.50R20:20x9:8x6.5/8x165.1:+0:-;37x12.50R20:20x9:8x6.5/8x165.1:+1:-;35x12.50R20:20x9:8x6.5/8x165.1:+1:-;37x12.50R20:20x10:8x6.5/8x165.1:-25:Minor Trimming;35x12.50R20:20x10:8x6.5/8x165.1:-25:-;37x12.50R20:20x10:8x6.5/8x165.1:-24:Minor Trimming;35x12.50R20:20x10:8x6.5/8x165.1:-24:-;37x12.50R20:20x10:8x6.5/8x165.1:-19:Minor Trimming;35x12.50R20:20x10:8x6.5/8x165.1:-19:-;37x12.50R20:20x10:8x6.5/8x165.1:-18:Minor Trimming;35x12.50R20:20x10:8x6.5/8x165.1:-18:-;37x12.50R20:20x12:8x6.5/8x165.1:-44:-;35x12.50R20:20x12:8x6.5/8x165.1:-44:Trimming Required;37x12.50R22:22x10:8x6.5/8x165.1:-25:Minor Trimming;35x12.50R22:22x10:8x6.5/8x165.1:-25:-;37x12.50R22:22x10:8x6.5/8x165.1:-24:Minor Trimming;35x12.50R22:22x10:8x6.5/8x165.1:-24:-;37x12.50R22:22x10:8x6.5/8x165.1:-19:Minor Trimming;35x12.50R22:22x10:8x6.5/8x165.1:-19:-;37x12.50R22:22x10:8x6.5/8x165.1:-18:Minor Trimming;35x12.50R22:22x10:8x6.5/8x165.1:-18:-;35x12.50R22:22x12:8x6.5/8x165.1:-44:Trimming Required
UPC840269974151

Showing 6 of 6 fitment records.

YearsMakeModelTrimDrive
2025–2026Ram3500Big Horn4WD
2025–2026Ram3500Laramie4WD
2025–2026Ram3500Limited4WD
2025–2026Ram3500Limited Longhorn4WD
2025–2026Ram3500Special Service4WD
2025–2026Ram3500Tradesman4WD

Every kit can be professionally installed at any of our 7 Oasis Tires & Wheels locations across El Paso and Las Cruces.
